CNC grinding machine for
Profiling CBN grinding wheels
You have come to the right place if you are looking for a new CNC grinding machine for profiling CBN grinding wheels. We manufacture your machine tailor-made for your individual requirements! We look forward to your inquiry!
Your benefits
As a manufacturer of industrial grinding machines for metal, GST Grinder delivers highest precision solutions since 1992.
- Specialized in circular grinding ✓
- Completely individual ✓
- High-precision technology ✓
- Short retooling times ✓
- Integrated automation ✓
- Improved energy balance ✓
Implementations
- Workpiece: Grinding wheels
- Ceramic & galvanic CBN can be used
- Machining procedure
- Profiling of the grinding wheel by use of a diamond contour roll
- Grinding of a microsection – for profile measurement via measuring machine
- If necessary: Regrinding of the profile in assembled state

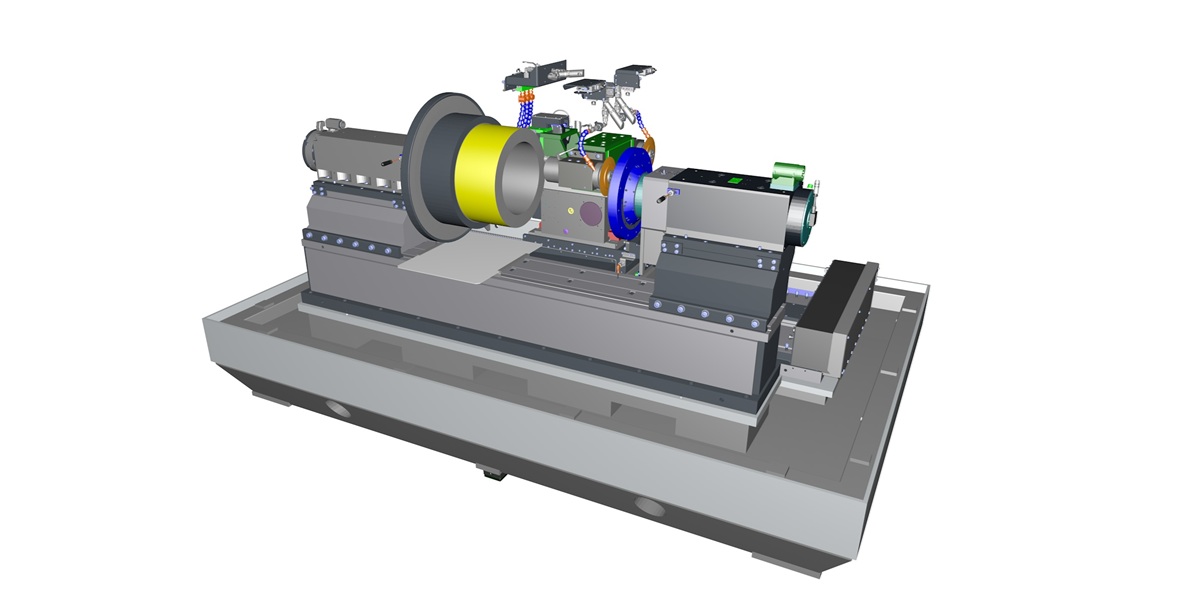

CNC grinding machine for profiling CBN grinding wheels up to Ø 700 mm
Diameter range up to Ø 700 mm
Features of GST machines
- Possibility of 1 or 2 processing stations for different workpiece holders within the machine
- Test piece holder for test grinding on a sample piece for checking the wheel contour on the measuring machine
- Monitoring by camera in the machine interior is possible
- Variable input masks for dressing strokes, automatic search by acoustic emission, test piece processing & menu-guided setup
- Siemens Sinumerik ONE control system
- GST spindles with high precision ball bearings
- Recirculating roller guides
- Linear drive technology
- Compact design
- Optional features: coolant system, suction unit, hand-held control unit, industrial PC,
grinding wheel handling, multiple tool spindles for dressing rollers on B-axis (different
machining angles and tools)
CNC grinding machine for profiling CBN grinding wheels between Ø 200 and 1500 mm
Diameter range Ø 200 – 1,500 mm
Features of GST machines
- Possibility of 1 or 2 processing stations for different workpiece holders within the machine
- Test piece holder for test grinding on a sample piece for checking the wheel contour on the measuring machine
- Monitoring by camera in the machine interior is possible
- Variable input masks for dressing strokes, automatic search by acoustic emission, test piece processing & menu-guided setup
- Siemens Sinumerik ONE control system
- GST spindles with high precision ball bearings
- Recirculating roller guides
- Linear drive technology
- Compact design
- Tool magazine (vertical grinding spindle) with HSK holder
- Optional features: coolant system, suction unit, hand-held control unit, industrial PC,
grinding wheel handling, multiple tool spindles for dressing rollers on B-axis (different
machining angles and tools)
Feel free to contact us without any obligations!
